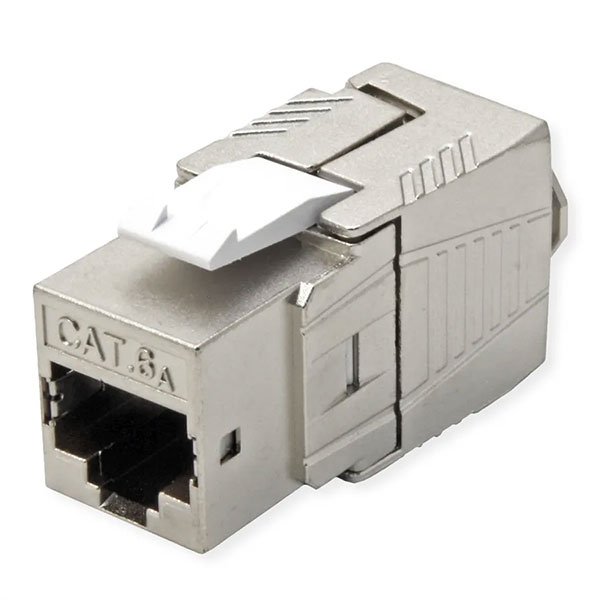

Keystone STP Cat.6A, GHMT, Roline 21.17.0327
Кат. номер: 2403423
Цена: 6.12 € с ДДС
Основни параметри:
- Предназначение: Cables
Как се поръчва | Начини за плащане | Доставка
- Категория: Мрежови у-ва
- Подкатегория: Аксесоари
- 0 коментара
Детайлна информация / Технически характеристики
{{The solution for Cat.6A cabling for data rates up to 10Gbit/s - GHMT certified
- Toolless mounting - without using a LSA tool: cable wires are simply placed into the guides of Keystone module, the module is closed and compressed - the connection is ready for use
- Cat.6A Keystone Jack (Module) STP
- Fully shielded Housing (zinc alloy)
- 360 degree fully shielded
- Slim type
- 180 degree cable entry
- Supports PoE per IEEE 802.3af,PoE+ per IEEE 802.3at
- For cables with AWG 23-26
- For cables with OD: 5.5-9.0 mm
- Colour code on the Keystone jacks based on the standard EIA/TIA 568 A & B
- Dimensions (L x W x H): 41.6×16.5×20.3mm
GHMT certified
| Manufacturer | ROLINE |
|---|---|
| Product group | Connection technology TP |
| Product type | RJ45 Keystone Jack |
| Colour | silver |
| Shield type | Screened |
| Transfer quality | Cat6A / Class EA |
| Quantity of ports | 1 |
| Assignment | EIA/TIA 568A & 568B |
| Connection direction | Straight |
| Technical particularity | GHMT certified |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 60 °C |
| Height | 20.3 mm |
| Width | 16.5 mm |
| Depth | 41.6 mm |
| Weight | 22 g |
| Height of packaging (single piece) | 20 mm |
| Width of packaging (single piece) | 20 mm |
| Depth of packaging (single piece) | 40 mm |
| Package weight (single piece) | 0.02 kg |
